Solution model label: type error fro createBorder

Classic Servoy
1

In a solution model form I created a label and then tried to add a border

var endTitle = frmEnd.newLabel('Error!!!',20,20,420,30);
endTitle.borderType = solutionModel.createBorder(1,'#ff0000');
endTitle.fontType = solutionModel.createFont('Helvetica',1,24);
endTitle.foreground = '#ff0000';
endTitle.transparent = true;

but this generates a warning The method createBorder() is undefined for the type JSSolutionModel and, if I run the method, its crashes with a type error```
TypeError: Cannot find function createBorder in object SolutionModel. (/Users/john/Servoy 6.1/servoy_workspace/dbfa_global_service/globals.js#197)

Is this a bug or am I doing something terribly wrong?

MacOs X 10.8.2
java.version=1.6.0_35
2

Hi Rioba,

Like the error says the function solutionModel.createBorder() doesn’t exists.
What you want is solutionModel.createLineBorder().
Check the solutionModel node in the SolutionExplorer tree for the other border options.

Hope this helps.

3

Thanks for your reply, always prompt and useful. However I just copied the function from the SolutionModel/JSLabel/borderType example

var field = form.newField('my_table_text', JSField.TEXT_FIELD, 10, 10, 100, 20);
field.borderType = solutionModel.createBorder(1,'#ff0000');

I didn’t realize there is a borderType function at SolutionModel node. So, what’s the use of the createBorder function at the JSLabel node?

4

Hi Rioba,

rioba:
I didn’t realize there is a borderType function at SolutionModel node. So, what’s the use of the createBorder function at the JSLabel node?

I double checked but there is no createBorder() function on any of the solutionModel classes so I am not sure where you got it from.
Anyway, the createLineBorder (and other createXXXXBorder functions) are just helper methods to produce the string that the borderType property understands.

Hope this helps.

5

Hi Roclasi,
the code I posted is the example generated by clicking the move sample button on the SolutionModel/JSLabel/borderType property and it is also in the Wiki page

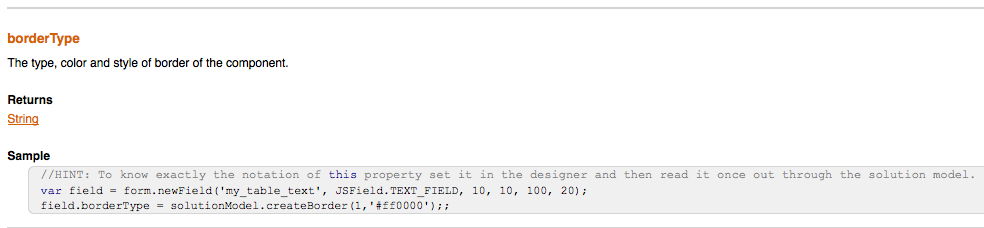

[attachment=0]border.jpg[/attachment]

border.jpg984×228 24.1 KB

6

Hi Rioba,

I suggest you file a bugreport for this.
The documentation (wiki and sample code) doesn’t reflect the actual functionality.

7

Thanks, I will do it right away
